AGV叉車 XPG151
Manual-automatic point-to_x0002_multipoint intelligent handling robot

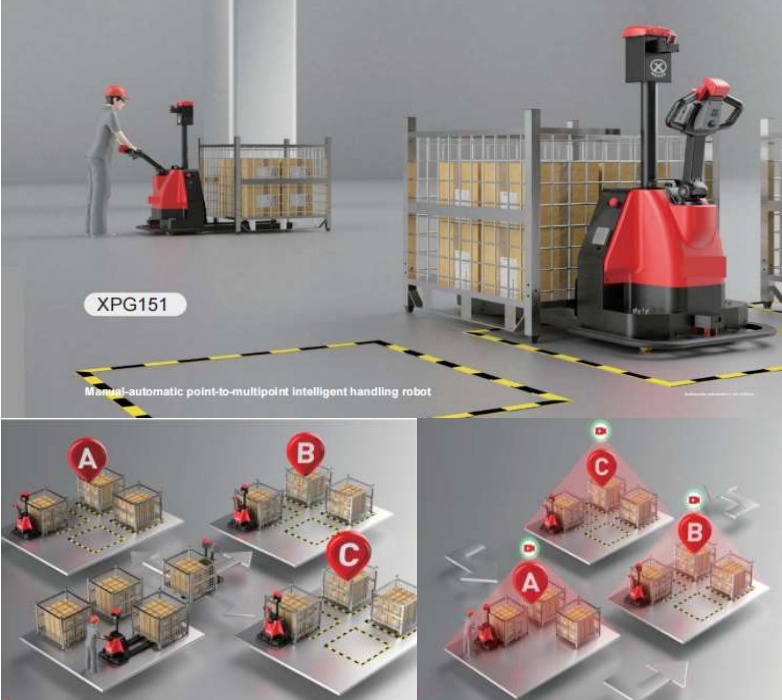

Core application scenario:
①Suitable for single point (manual forklift) to multi-point or multi-column (automaticunloading)
②With the aerial camera, it is suitable for multi-point to multi-point automatic (automatic fork unloading) transportation scenarios
Functional structure
Basic function
1. Manual function
2. Quick battery replacement
Navigation function
1.Visual reflective stickers

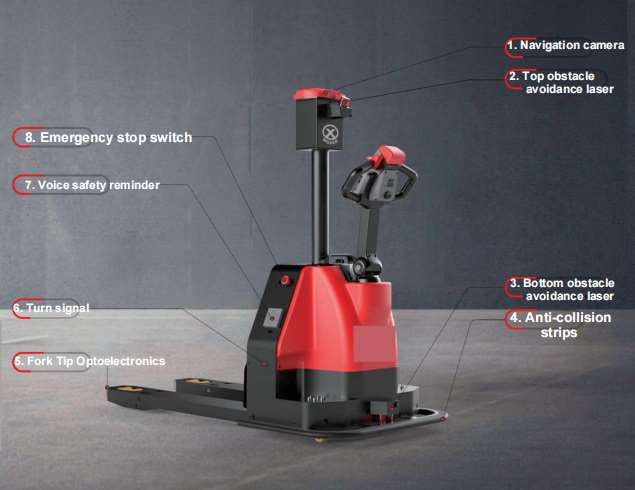

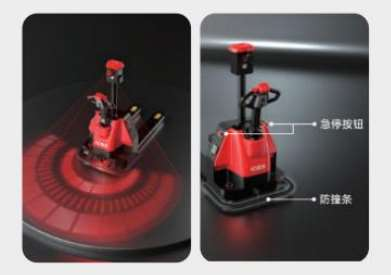

Security function
1. Top laser
2. Bottom laser
3. Fork tip photoelectric
4. Anti-collision strip
5. Emergency stop switch
Sound and light reminder
1. Voice reminder
2. Turn signal Common tasks
B: Manual-Manual/Automatic
S: Automatic-Automatic

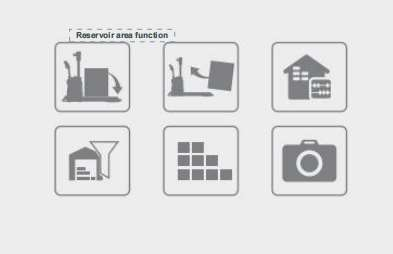

Diagram
1. Unload goods in column order
2. Pick up goods in order by aerial camera
3. Empty and full display
4. Storage area screening
5. Single storage location clearing/Full
6. Aerial camera management
Vehicle interaction
Mobile phone 2. Multi-key
Calling Navigation function device
Mobile phone 2. PAD 3. Aerial camera
Device interconnection
Elevator 2. Automatic Basic function door
Implement functions
Point-to-point indication 2. Customized tasks

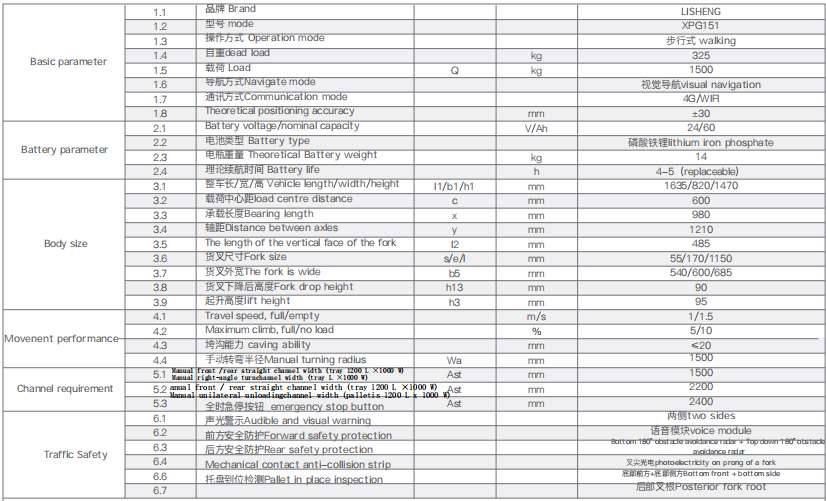

XPG151 Main Technical Parameters
The content is a product introduction, the chart shown may contain non-standard configuration, if there is an improvement in appearance, technical parameters or configuration, we will try to update the information in time, but in individual cases these information may still be different from the latest situation, please contact the business manager for confirmation before placing an order.

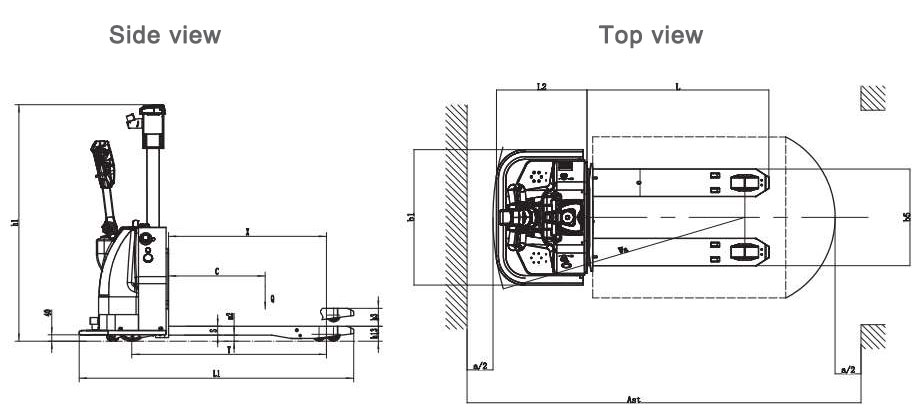

Product diagram
